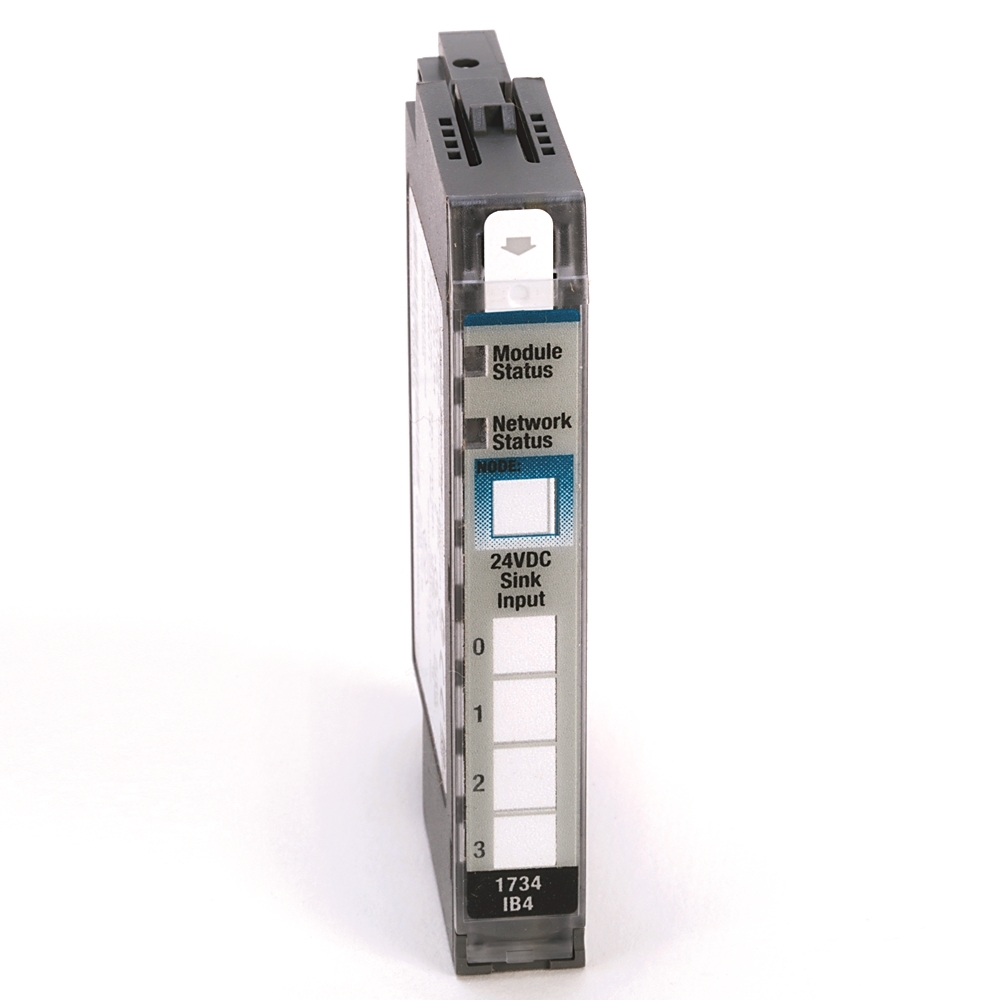

1734 Point DC Digital Input Module | PN: 1734-IBXX
1734 Point DC Digital Input Module | PN: 1734-IBXX



Description

Cat. No.Inputs/OutputsVoltage CategoryWiring BasePOINTBus Current @ 5V DC
1734-IB22 inputs, sink24V DC1734-TB, 1734-TBS, 1734-TOP, 1734-TOPS75 mA
1734-IB44 inputs, sink24V DC1734-TB, 1734-TBS, 1734-TOP, 1734-TOPS75 mA
1734-IB4D4 inputs, sink, diagnostic24V DC1734-TB, 1734-TBS, 1734-TOP, 1734-TOPS50 mA
1734-IB88 inputs, sink24V DC1734-TB, 1734-TBS, 1734-TOP, 1734-TOPS, 1734-TOP3, 1734-TOP3S75 mA
1734-IB8S8 inputs, sink, safety24V DC1734-TB, 1734-TBS, 1734-TOP, 1734-TOPS175 mA
1734-IV22 inputs, source24V DC1734-TB, 1734-TBS, 1734-TOP, 1734-TOPS75 mA
1734-IV44 inputs, source24V DC1734-TB, 1734-TBS, 1734-TOP, 1734-TOPS75 mA
1734-IV88 inputs, source24V DC1734-TB, 1734-TBS, 1734-TOP, 1734-TOPS75 mA
