1734 Analog Output Modules | PN: 1734-OEXX
1734 Analog Output Modules | PN: 1734-OEXX



Description

Cat. No.Inputs/Outputs RangeResolutionWiring BasePOINTBus Current @ 5V DC

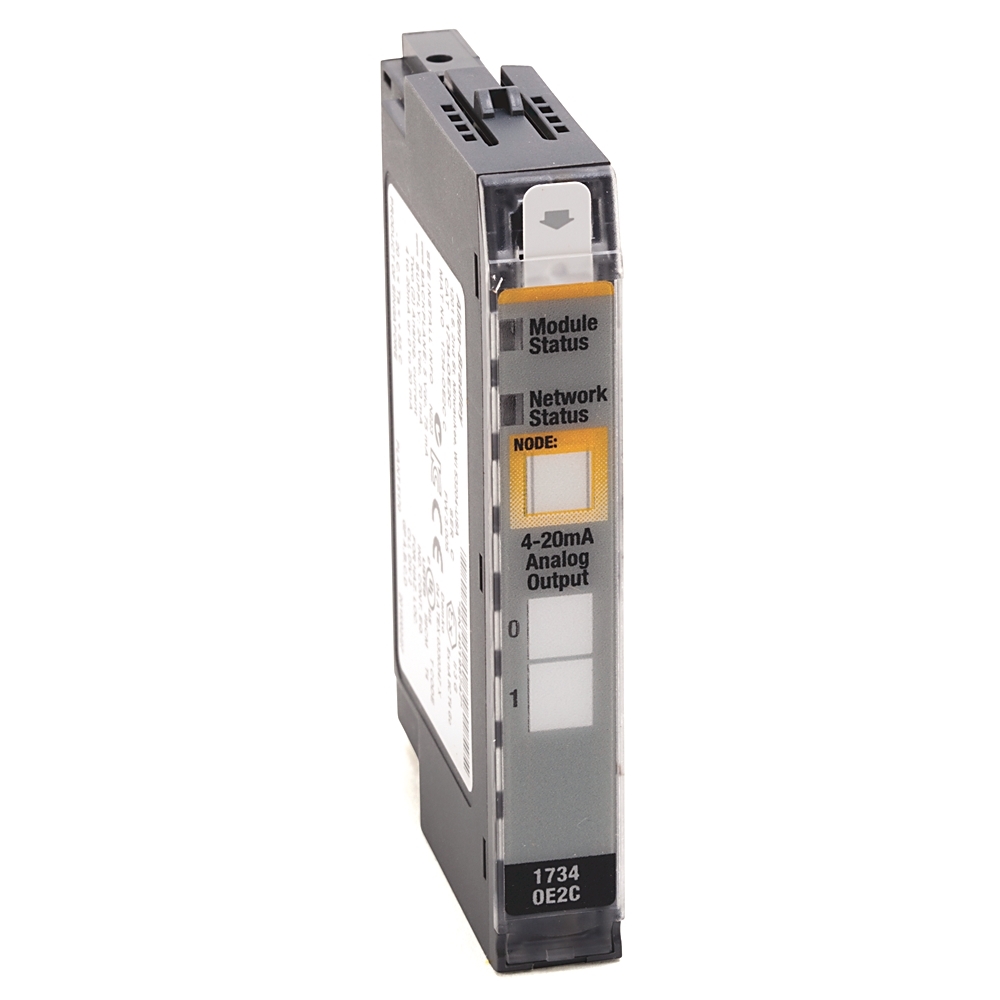

1734-OE2C2 single-ended, nonisolated, current 4…20 mA
0…20 mA		13 bits over 0…21mA µA/cnt (average) 3…2.7 µA/cnt (typical range)1734-TB, 1734-TBS, 1734-TOP, 1734-TOPS75 mA
1734-OE2V2 single-ended, nonisolated, voltage0…10V (-0.0V under, +0.5V over) ±10V (-0.5V under, +0.5V over) 14 bits (13 plus sign) 1.28 mV/cnt in unipolar or bipolar mode1734-TB, 1734-TBS, 1734-TOP, 1734-TOPS75 mA
1734-OE4C4 single-ended, nonisolated, current4…20 mA
0…20 mA		16 bits over 0…21 mA 0.32 µA/cnt)1734-TB, 1734-TBS, 1734-TOP, 1734-TOPS75 mA
