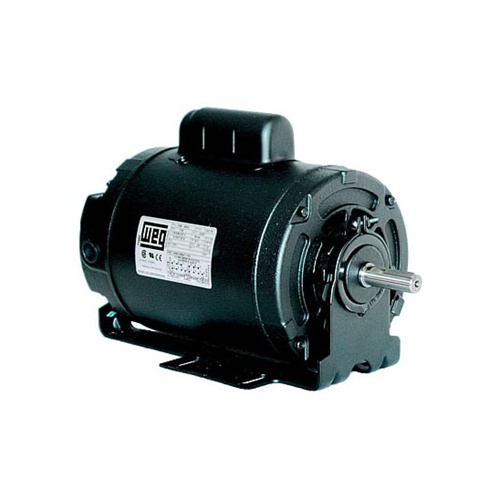

Poultry Fan Motors : Single-Phase - Resilient Base
Poultry Fan Motors : Single-Phase - Resilient Base



Description

WEG poultry fan motors are specifically designed for agricultural fan applications. Mounted within the airstream for proper cooling, the totally enclosed design ensures long life in poultry house and barn exhaust fan applications.
Technical Information
Applications
  • Cooling fans
Standard Features
  • Single-phase, IV pole, 60Hz
  • Voltage: 115/230V, suitable for 208V at 1.0 service factor
  • Service Factor according to NEMA Standard MG 1-18-329
  • Totally Enclosed Air Over (TEAO)
  • Double shielded ball bearings (ZZ)
  • Squirrel cage rotor
  • Class "B" insulation (130ºC)
  • Continuous Duty (S1)
  • Automatic Thermal Overload (ATO)
  • Rotation: Reversible
  • Color: RAL 7022 (Dark Gray)
Optional Features
  • Class "F" insulation
  • Special voltages
  • Specially dimensioned shaft
