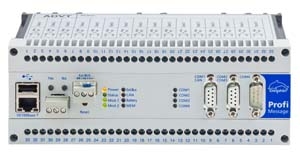

Network compatible and modular
ProfiMessage are modular devices for data acquisition and
automation. A master/slave design makes ProfiMessage
suitable for both small and large applications that require
the processing of thousands of channels. Master and slave
devices can each accommodate two I/O modules. There is a
range of I/O modules for users to select an appropriate
module(s) for their application. I/O modules are available for
any number of channels and sensor types. A network interface
enables ProfiMessage devices to be integrated into a
TCP network or to be directly connected to a PC workstation
or laptop/netbook computer. Online measurement data
can be transmitted, saved and processed. The data can be
stored simultaneously within the ProfiMessage device itself.
ProfiLab is identical in construction and functionality to
ProfiMessage – only their housings differ. ProfiMessage
devices are designed for rail-mounted installations, and
ProfiLab, with its 4 mm plugs, for laboratory applications.
Product features
- Data acquisition and automation
- Data transmission via LAN (internet / intranet)
- Data storage capability for independent operation
- Modular and scalable
- Full potential isolation
- Universal inputs and outputs
- Control and automation functions
- Signal conditioning within the device
- Connection to external equipment and PLC control
- Configuration via PC
Universal connectivity
ProfiMessage's universal inputs enable the connection of
signals of any type including non-isolated signals. This
means costly measurement transducers are usually not
necessary. Potential isolation between channels as well as
differential inputs saves both time and money.
Universal inputs enable any unit of measurement to be
acquired (e.g. temperature, pressure flow, vibration etc.).
Data then undergoes direct scaling and linearization.
Conversions from mA to bar or ml/min take place directly
within the ProfiMessage device. High measurement precision
is achieved though the use of 24-bit resolution Sigma
Delta converters and enables the connection of the smallest
of signals (e.g. thermocouples).
Various Applications
- Multi-channel data acquisition
- Monitoring and alarm management
- Test stand automation
- Product testing
- Quality assurance
- Monitoring of buildings
Easy to configure
An optional integrated data memory can permanently store
up to 128 million measurement values without PC-support
and with edge or level triggering. The ProfiSignal-Software
enables online / offline analysis, visualization and operation
from any PC workstation as well as PC-controlled process
automation and database communications via ODBC/SQL.
Configuration of the Message devices takes
place with the PC user-friendly DataService / Configurator
software. Configuration data is processed online and permanently
within the devices. Configuration data may be
amended and adjusted during measurement runs.
| Analog Channels |
|---|
| Data Channels |
Up to 6 Analog Channels
Up to 4 Flexible Digital Channels
|
| Analog Channels |
2 Wire w/ Com. Ref. Terminal: 6 Channels
2 Wire Isolated: 4 Channels
3 or 4 Wire Isolated: 2 Channels
|
| Analog Inputs |
Inter-Channel Isolation: 100 Volts (Relay Switching)
Analog Section Isolation: 100 Volts (Opto-Isolated)
Input Impedance: 100 KO, >100MO
Common Mode Range: ±3.5V or ±35V on 30 Volts Range
|
| Analog Measurement Ranges |
Voltage: ±30 mVdc; ±300 mVdc; ±3 Vdc; ±30 Vdc
Current: ±0.3 mA; ±3 mA; ±30 mA
Resistance: 100O; 1,000O; 10,000O
Frequency: 100Hz; 10 kHz
|
| Analog Measurement Resolution |
Voltage: 0.25µV; 2.5µV; 0.25µV; 250µV
Current: 2.5nA; 25 nA ; 250 nA
Resistance: 1.5 mO; 15 mO; 150 mO
Frequency: 0.0002%; 0.0002%
|
| Accuracy |
DC Voltage: 0.1% (5°C to 40°C); 0.35% (-45°C to 70°C)
DC Current: 0.15% (5°C to 40°C); 0.45% (-45°C to 70°C)
DC Resistance: 0.1% (5°C to 40°C); 0.35% (-45°C to 70°C)
Frequency: 0.1% (5°C to 40°C); 0.25% (-45°C to 70°C)
|
| Sampling |
Integrates over 50/60 Hz Line Period for Accuracy and Noise Rejection
Maximum Sample Speed: 25 Hz
Effective Resolution: 18 Bits
Linearity: 0.01%
Common Mode Rejection: >90dB
Line Series Mode Rejection: > 35dB
|
| Sensor Excitation (Supply) |
Analog Channles: Selectable 250µA or 2.5mA Precision Current Source, 4.5V Voltage Source, or Switched External Supply
General Purpose: Switchable 12V Regulated Supply for Powering Sensors & Accessories (Max. 150mA)
|
| Analog Sensors |
| Thermocouples |
Type: B, C, D, E, G, J, K, N, R S, T
Calibration Standard: ITS-90
|
| RTDs |
Materials Supported: Pt, Ni, Cu
Resistance Range: 10O to 10KO
|
| Thermistors |
Type: YSI 400xx Series, other Types*
Resistance Range: <10kO**
* Other Thermistor Types are Supported by Thermistor Scaling and Calculated Channels
** Resistance Range Can Be Increased with the Use of a Parallel Resistor.
|
| Monolithic Temperature Sensors |
Type: LM34 - 60, AD590, AD592, TMPxx, LM135, LM235, LM335
|
| Strain Gauge and Bridge Sensors |
Configurations: 1/4, 1/2 & Full Bridge
Excitation: Voltage or Current
|
| 4-20mA Current Loop |
Internal 100R Shunt or External Shunt Resistor
|
| Digital Channels |
| Digital Input/Outputs |
4 Bi-Directional Channels
Digital Input Type: 4 Logic Level (Max. 20/30 Volts)
Digital Output Type: 3 With Open Drain FET (Max. 30V, 100mA), 1 with Logic Output
|
| Relay Output |
1 Latching Relay, contacts (Max: 30Vdc, 1A)
|
| Counter Channels |
| Low Speed Counters |
-- 4 Counters Shared with Digital Inputs
-- 32 Bit Size
-- 10 Hz Max Count Rate
-- Low Speed Counters do not Function in Sleep Mode
|
| Dedicated Counter Channels |
-- 4 High Speed Inputs
-- 32 Bit Size
-- 10kHz Max Count Rate
-- 2 Logic Level Inputs (Max ±30V)
-- 2 Sensitive Inputs (10mV) for Magnetic Pick Ups (Max. ±10V)
|
| Serial Channels |
| SDI-12 |
-- 1 SDI-12 Inputs, Shared with Digital Channels
-- Each input can support up to 10 SDI-12 Sensors
|
| Generic Serial Sensor |
-- Flexible Option for Logging From Wide Range of Smart Sensors and Data Streams
-- Host RS232 Port* (Available Port)
-- 300 to 115,200 Baud Rate
* If used as a Serial Sensor channel then the Host Port is Not Available for Other Communications
|
| Calculated Channels |
| General |
Combine values from analog, digital and serial sensors using expressions involving variables and functions.
|
| Functions |
Arithmetic, Trigonometric, Relational, Logical and Statistical
|
| Alarms |
| Condition |
High, Low or Within Range and Outside Range
|
| Delay |
Optional Time Period for Alarm Response
|
| Actions |
Set Digital Outputs, Transmit Message, Execute any DataTaker Command
|
| Scheduling of Data Acquisition |
| Condition |
High, Low or Within Range and Outside Range
|
| Number of schedules |
11
|
| Schedule rates |
10ms to days
|
| Internal Data Storage |
Capacity: 128mb = approx 10,000,000 data points
|
| Removable USB storage device |
Type:compatible with USb 1.1 or USB 2.0 drivers, e.g. Flash drive
Capacity: approx 90,000 data points per megabyte
|
| Communication Interfaces |
| Ethernet Port |
Interface: 10BasteT (10Mbps)
Protocol: TCP/IP
|
| Host RS232 Port |
Speed: 300 to 115,200 Baud (57,600 Default)
Flow Control: Hardware (RTS/CTS), Software (XON/XOFF), None
Handshake Lines: DCD, DSR, DTR, RTS, CTS
Modem Support: Auto-Answer and Dial Out
Protocols: ASCII Command, TCP/IP (PPP), Serial Sensor
|
| Network TCP/IP Services |
| Network |
Ethernet and/or Host RS232 (PPP) Communication Ports
|
| Command Interface |
Access the ASCII command interface via TCP/IP
|
| Web Server |
-- Access Current Data and Status from any Web Browser
-- Download Data in CSV Format
-- Command Interface Window
-- Define Mimic Displays
|
| FTP Client |
Automatically upload logged data direct to an FTP server.
|
| System |
| Display and Keypad |
Type: LCD, 2 Line by 16 Characters, Backlight
Functions: Channel Data, Alarms, System Status
Keypad: 6 Keys for Scrolling and Function Execution
Status LEDs: 4 (Sample, Disk, Attention, Power)
|
| Firmware Upgrade |
Via: RS232, Ethernet, USB disk.
|
| Real Time Clock |
Normal resolution: 200µs
Accuracy: ±1 min/year (0°C to 40°C), ±4 min/year (-40°C to 70°C)
|
| Power Supply |
External Voltage Range: 10 to 30 Volts DC
Peak Power: 6 W (12 Volts DC 1 Amp)
|
| Average power Consumption (typtical) |
1 Sec Sampling: 560 mW (1 Sample); 926 mW (6 Samples)
5 Sec Sampling: 250 mW (1 Sample); 337 mW (6 Samples)
30 Sec Sampling: 50 mW (1 Sample); 65 mW (6 Samples)
1 Min Sampling: 30 mW (1 Sample); 38 mW (6 Samples)
5 Min Sampling: 14 mW (1 Sample); 16 mW (6 Samples)
30 Min Sampling: 11 mW (1 Sample); 11 mW (6 Samples)
1 Hr Sampling: 11 mW (1 Sample); 11 mW (6 Samples)
|
| Physical Environment |
| Construction |
Powder Coated Steel & Anodized Aluminum
|
| Dimensions |
18.0 cm x 13.7 cm x 6.5 cm (180mm x 137mm x 65mm)
|
| Weight |
900 grams
|
| Operating Range |
Temperature: -45°C to 70°C (Reduced LCD Operation Outside Range: -15°C to 50°C)
Humidity: 85% RH, Non-condensing
|
|
|
|
 |
|
 |
|
